Description

Name：Fully automatic lifting guard column
Model：GL-QZD06-219-6mm
Brand：固力宝盾
1. System control: electro-hydraulic; Power supply: 220V.

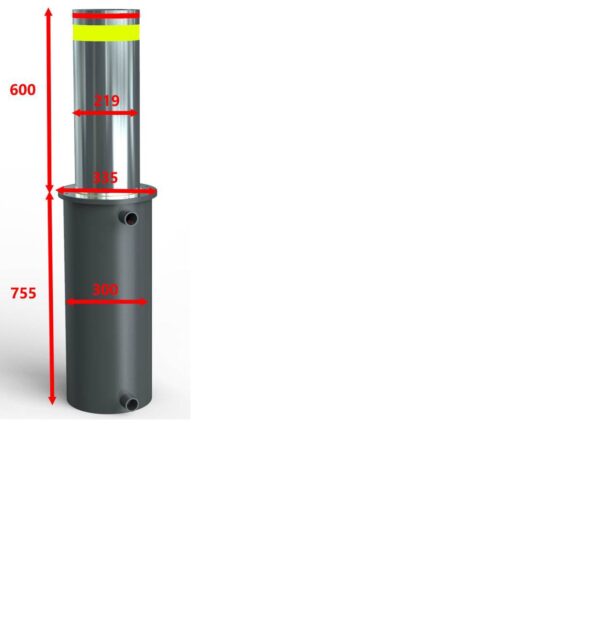

2, 304 stainless steel cylinder: diameter 219mm;
Thickness 6+-1mm; Lifting height 600mm. Panel
flange :304 material, outer surface of inner
cylinder :304 stainless steel
3, outer barrel: diameter 335X high 755mm, embedded
depth 755mm, flange thickness 6mm(+-0.7).
4. Weight: about 56KG.
5, waterproof, dustproof grade: IP68
6, anti-collision grade: k12 (equivalent to 120KM/ hour
impact, the car is stopped, the equipment works as usual)
7, through the pressure: can pass 100 tons of container
vehicles.
8, rising speed: ≤4S, falling speed: ≤3S.
