Description

IP-based Door Access Control Panel for one door with built-in access control functions and Wiegand readers support.

Features

• Advanced Access Control Features. Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxiliary Input/Output Linkages are built into controller firmware.
• Choice of Readers. Full range of card readers supported. C3 supports any wiegand-output reader including HID Prox, iClass, and XceedID Multi-Technology.
• Door Control and More. Along with relay contacts for controlling door locks, easily programmable auxiliary relays can be used for additional control and interface to lights, alarms, annunciators, intrusion detection panels, or even extra locking devices or gate controllers.
• Capacity. 10,000 events and transactions. Controller is backed up in real-time in on-board optional SD card.
• Communication. C3 controllers installed easily on your network and support both TCP/IP and RS-485 communication.
• Lowest Total Cost of Ownership. C3 controller firmware can be upgraded in the field. New controller features can be loaded without any advanced tools.

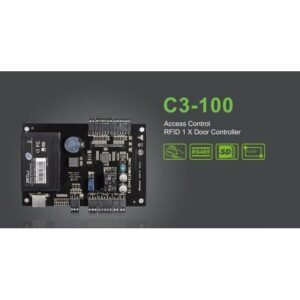

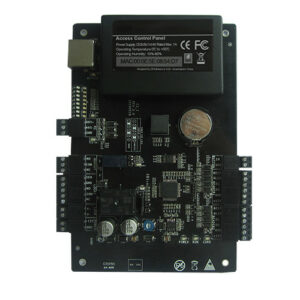

zkteco mesin kontrol panel C3-100

C3-100 adalah salah pengendali satu pintu yang paling tangguh dan andal di pasaran, dengan banyak fitur bawaan. Dalam bundel ini, splitter PoE dapat menawarkan 12V 2A DC untuk kunci C3-100 dan satu 12V DC. Di sisi input, hanya perlu menghubungkan splitter ke switch PoE.

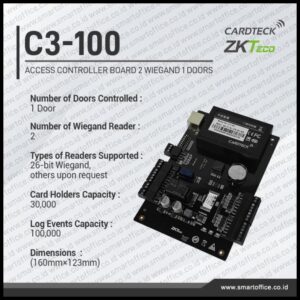

Spesifikasi :

User Capacity : 30000
Event Buffer : 100,000 transactions
Communication : RS485, Ethernet
Nominal Voltage of C3-100 : 12v
Standby Current of C3-100 : 40mA
Operating Temp : 0°C~ 45 °C
Operating Humidity : 20%~ 80%
Number of doors controlled : One door
Number of readers Supported : 2
Aux. Output : 1
Types of readers supported : 26-bit Wiegand, others upon request
Number of Inputs : 2 (Exit Device and Door Status)
Number of Outputs : 2 (One Form C relay for lock and one Form C relay for Aux output)
Weight : 3.35kg
Dimensions (Bundle Only) : 305.2mm × 298.4mm × 89mm
Dimensions ( Board Only) : 160mm × 106mm
